| Video and Audio |
| IP Video Input |
4-Channel |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
60 Mbps |
| HDMI Output Resolution |
1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output Resolution |
1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode |
HDMI/VGA Simultaneous Output |
| Multi-View Display |
04.jan |
| DECODING |
| Audio Compression |
G.711A/G.711U/G.726 |
| Video Compression |
H.265+/H.265/ H.264+/H.264 |
| Record Resolution |
8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback |
4-Channel |
| Capability |
2-ch @ 8MP, 4-ch @ 4MP |
| Record Management |
| Record Mode |
• Manual Recording |
| • Scheduling Recording |
| • Motion Detection Recording |
| Playback Mode |
• Instant Playback |
| • Regular Playback |
| • Tag Playback |
| • Event Playback |
| Backup Mode |
• Regular Backup |
| • Video Clip Backup |
| Playback Function |
• Play |
| • Pause |
| • Stop |
| • Fast Forward |
| • Fast Backward |
| • Play By Frame |
| • Full Screen |
| • Video Clip |
| • Export Clip |
| • Digital Zoom |
| • Lock Recording |
| • Audio On/Off |
| Hálózat |
| Szabvány |
UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access |
Android, iOS |
| Web Browser |
Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability |
ONVIF, CGI |
| External Interface |
| Network Interface |
1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface |
2× USB 2.0 |
| Audio Interface |
1, Audio In; 1, Audio Out |
| Alarm In/Out |
N/A |
| Serial Interface |
N/A |
| Power |
1× DC Jack |
| Reset Button |
1 |
| Speaker |
N/A |
| eSATA |
N/A |
| HDMI |
1 |
| VGA |
1 |
| HARD DISK |
| SATA |
1 SATA Interface |
| Capacity |
Up to 10 TB Capacity for Each HDD* |
| Alarm |
| General Alarm |
• Motion Detection |
| • Video Tampering |
| • Line-Crossing Detection |
| • Intrusion Detection |
| • Region Entering Detection |
| • Region Exiting Detection |
| • Object Abandoned/Removal Detection |
| • Vehicle Detection |
| • Human Detection |
| • Smart Frame |
| Anomaly Alarm |
• Video Loss |
| • Offline and IP Conflict |
| • Disk Exception |
| • Login Exception |
| Alarm Linkage |
• Recording |
| • White Light Alarm |
| • Buzzer |
| • Log |
| • Audible Alarm |
| Általános |
| Storage Temperature |
-40–70 °C |
| Storage Humidity |
10%~90% RH Non-Condensing |
| Csomagolás tartalma |

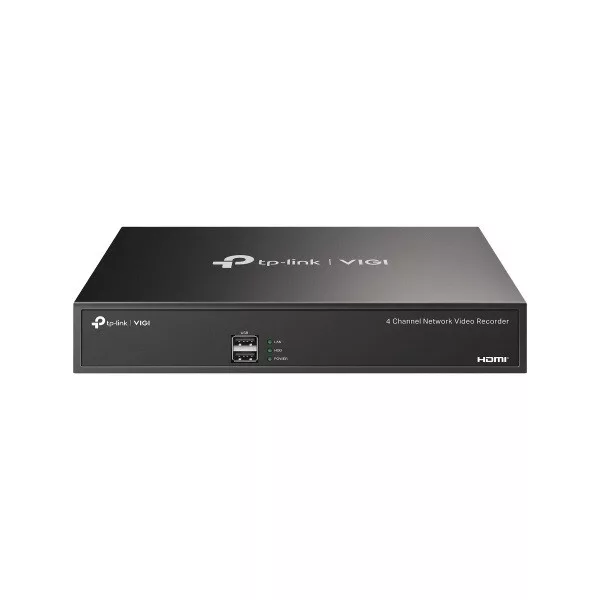

• VIGI Network Video Recorder |
| • Power Adapter |
| • HDD Screws |
| • Mouse |
| • Rubber Feet |
| • Quick Installation Guide |
| Working Temperature |
• NVR: -10–55 °C |
| • Power Adapter: 0–40 °C |
| Working Humidity |
10%~90% RH Non-Condensing |
| Méretek (Sz x Mé x Ma) |
246.2 × 148.2 × 45 mm |
| Külső tápellátás |
DC 12V/1.5A |
| Net Weight |
0.59 kg |
| Gross Weight |
0.95 kg |
| Power Consumption |
4.25 W (Without Disk) |
| Certifications |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
