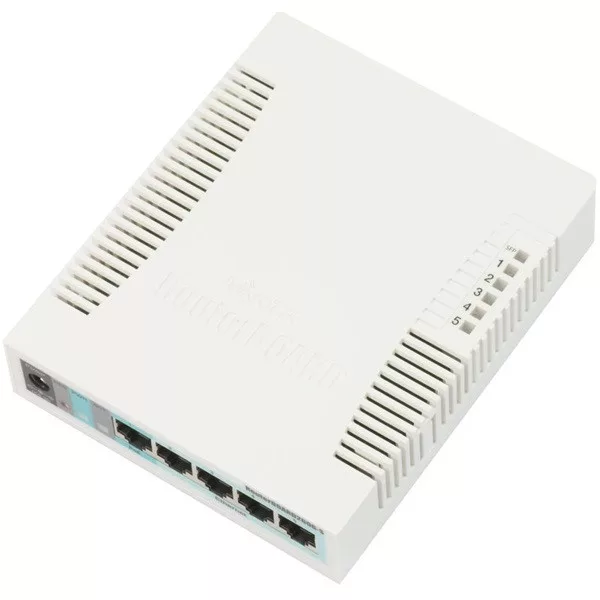

The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Specifications
| Details |
| Product code |
CSS106-5G-1S |
| Dimensions |
113x139x28mm |
| Operating System |
MikroTik SwOS |
| Storage size |
128 KB |
| Storage type |
FLASH |
| Tested ambient temperature |
-20°C to 70°C |
| |
|
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
11-30 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
11-30 V |
| Max power consumption |
5 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
| Details |
| SFP DDMI |
Yes |
| SFP ports |
1 |
Included parts
